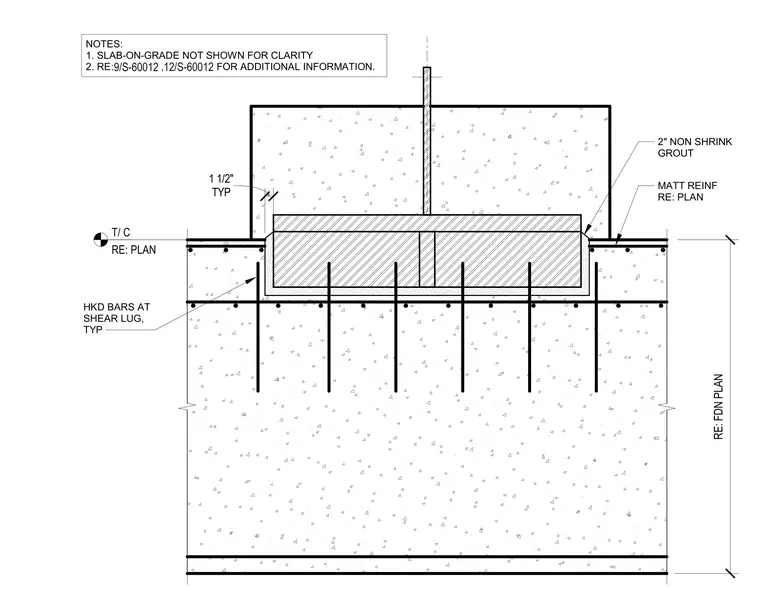

S-VJ7GJ — 11 Base Plate At Braced Frame

Structural · S-VJ7GJ

11 Base Plate At Braced Frame

Scale: 3/4" = 1'-0"
Units: imperial
Sheet: S-60012
Discipline: Structural

Materials

Concrete Masonry / CMU Steel

In this detail

MATT REINF RE: PLAN RE: FDN PLAN 2" NON SHRINK GROUT T/ C RE: PLAN NOTES: 1. SLAB-ON-GRADE NOT SHOWN FOR CLARITY 2. RE: , FOR ADDITIONAL INFORMATION. HKD BARS AT SHEAR LUG, TYP TYP 1 1/2" 9/S-60012 12/S-60012

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
