S-SE7HD — Brace - Beam To Column At Joist

Structural · S-SE7HD

Brace - Beam To Column At Joist

Scale: 3/4" = 1'-0"
Units: imperial
Sheet: S401
Discipline: Structural

Materials

In this detail

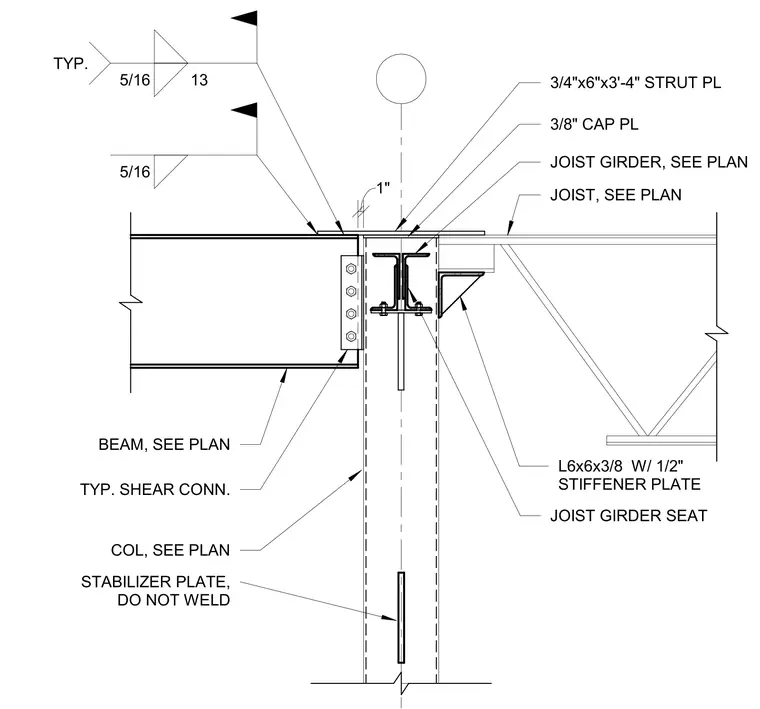

DETAIL BOOK REF. SHEET: S3.05 DATE: 03/15/2024 BEAM, SEE PLAN COL, SEE PLAN STABILIZER PLATE, DO NOT WELD 3/8" CAP PL JOIST GIRDER, SEE PLAN JOIST, SEE PLAN TYP. SHEAR CONN. 5/16 5/16 13 TYP. L6x6x3/8 W/ 1/2" STIFFENER PLATE JOIST GIRDER SEAT 1" 3/4"x6"x3'-4" STRUT PL
