Structural · S-RFPM8

Elevator Post/Column Slip Connection - Floor Level

Scale: 1" = 1'-0"
Units: imperial
Sheet: S-62202
Discipline: Structural

Materials

Steel

In this detail

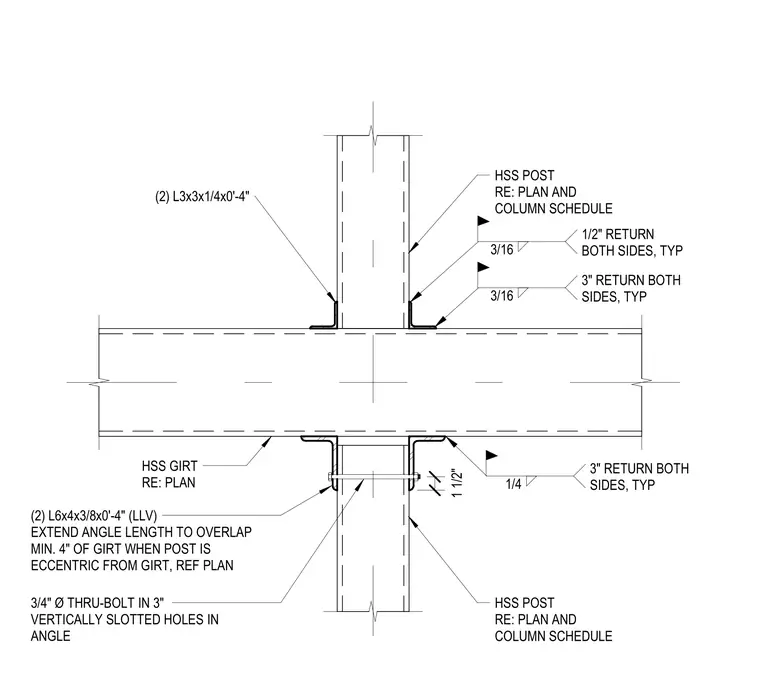

3/16 1/2" RETURN BOTH SIDES, TYP (2) L3x3x1/4x0'-4" HSS POST RE: PLAN AND COLUMN SCHEDULE 3/16 3" RETURN BOTH SIDES, TYP
