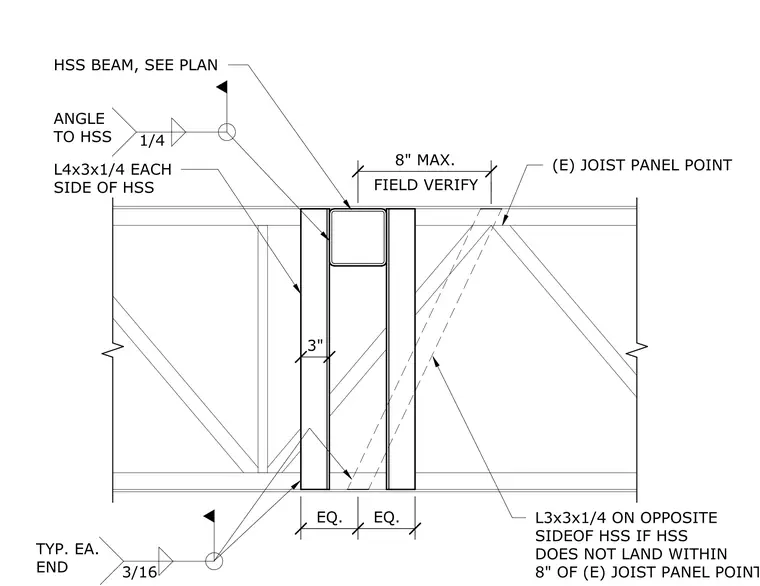

S-K4QGZ — Hss To (E) Roof Joist

Structural · S-K4QGZ

Hss To (E) Roof Joist

Scale: SCALE: 1" = 1'-0"
Units: imperial
Sheet: Sheets:
Discipline: Structural

Materials

Cold-formed Steel Steel

In this detail

HSS BEAM, SEE PLAN L4x3x1/4 EACH SIDE OF HSS (E) JOIST PANEL POINT L3x3x1/4 ON OPPOSITE SIDEOF HSS IF HSS DOES NOT LAND WITHIN 8" OF (E) JOIST PANEL POINT 3" EQ. EQ. ANGLE TO HSS 1/4 FIELD VERIFY 8" MAX. TYP. EA. END 3/16
