S-484ZR — Bolted Lug Corebrace At Chevron

Structural · S-484ZR

Bolted Lug Corebrace At Chevron

Scale: 1" = 1'-0"
Units: imperial
Sheet: 116
Discipline: Structural

Materials

In this detail

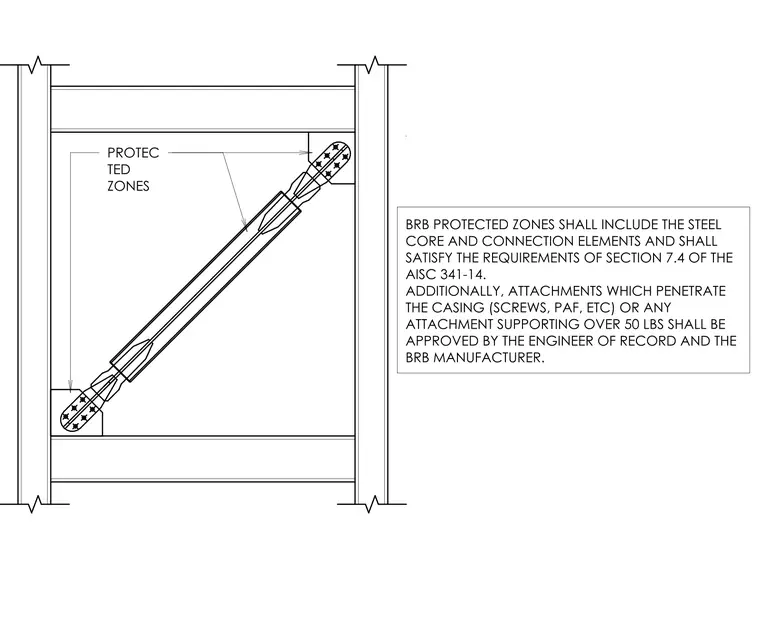

BRB BY SUPPLIER, TYP. GUSSET PLATE STIFFENER AS REQ'D BY BRB SUPPLIER, TYP. WORKING POINT BEAM WEB STIFFENER PLATE EA SIDE AS REQ'D BY BRB SUPPLIER, TYP. STEEL BRACE FRAME BEAM BEAM WEB STIFFENER PLATE EA SIDE AS REQ'D BY BRB SUPPLIER, TYP. = INDICATES PROTECTED ZONE SEE 5/S301 GUSSET PLATE BY BRB SUPPLIER, TYP. BY BRB SUPPLIER, TYP BY BRB SUPPLIER, TYP BY BRB SUPPLIER, TYP PROVIDE (2) ROWS OF PRE-TENSIONED BOLTS TO WEB AT DRAG BEAMS, SEE 3/4" SHEAR TAB SLOT THROUGH COLUMN

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
