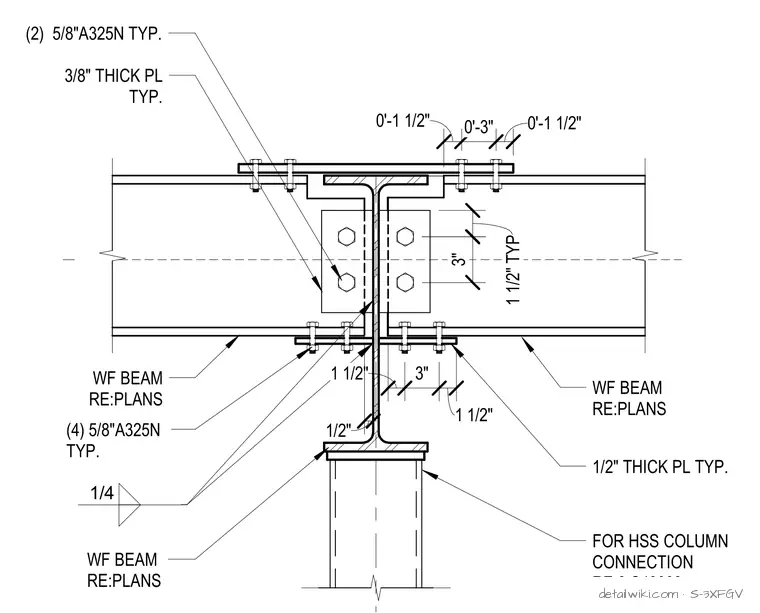

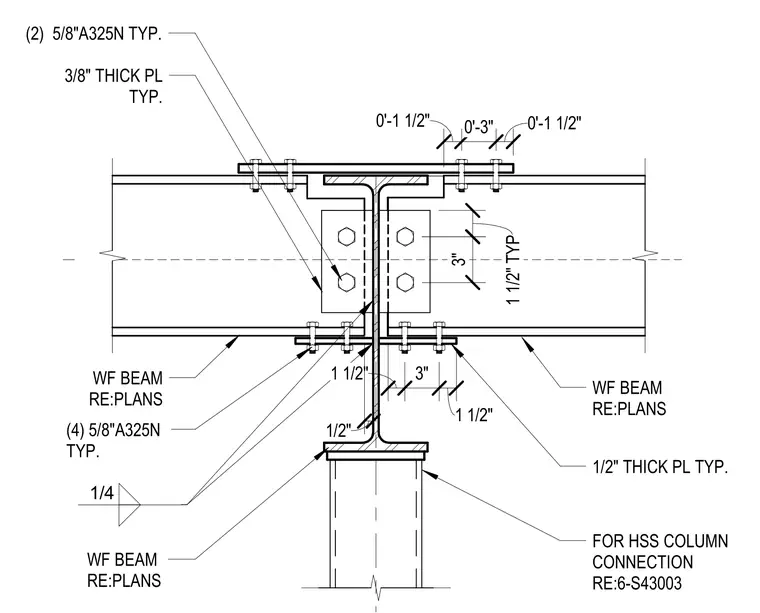

S-3XFGV — Wide Flange Beam To Beam Moment Connection

Structural · S-3XFGV

Wide Flange Beam To Beam Moment Connection

Units: imperial
Sheet: S-43003
Discipline: Structural

Materials

In this detail

(2) 5/8"A325N TYP. 3/8" THICK PL 3/8 WF BEAM RE:PLANS WF BEAM RE:PLANS (4) 5/8"A325N TYP. WF BEAM RE:PLANS TOP PLATE 1/2" THICK PL 1 1/2" BEAM GAGE 1 1/2" 3/8 WF BEAM RE:PLANS (4) 5/8"A325N TYP. WF BEAM RE:PLANS TOP PLATE AT SINGLE BEAM 1/2" THICK PL 1 1/2" BEAM GAGE 1 1/2" 1/2"

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
