Column Enclosure

Units: imperial
Sheet: P1K
Discipline: Architectural

Materials

Cold-formed Steel Gypsum / Drywall Steel

In this detail

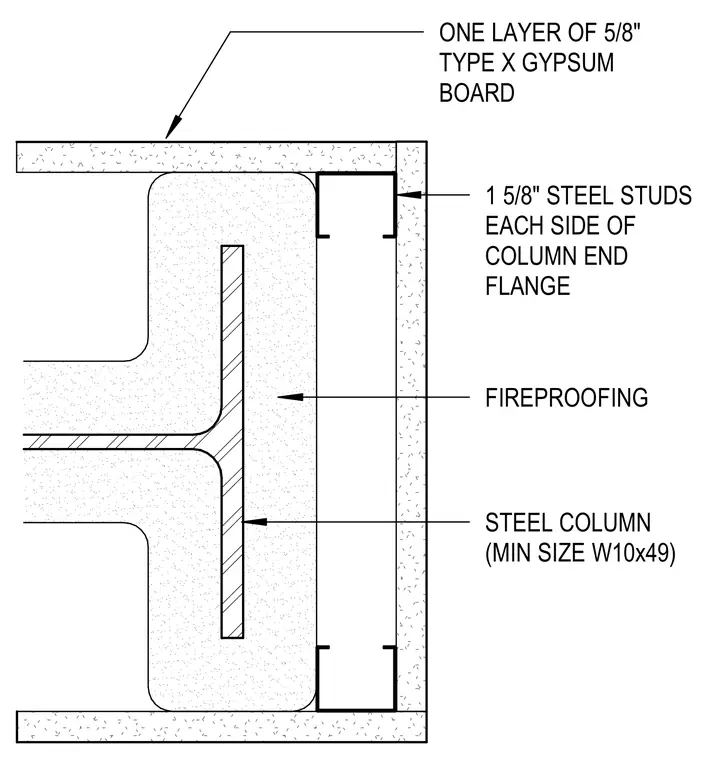

ONE LAYER OF 5/8" TYPE X GYPSUM BOARD 1 5/8" STEEL STUDS EACH SIDE OF COLUMN END FLANGE STEEL COLUMN (MIN SIZE W10x49) FIREPROOFING
