Mechanical · M-VA32A

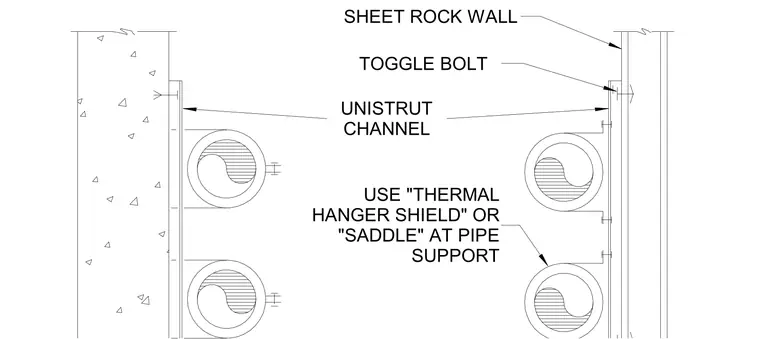

Typical Wall Or Floor Mounted Pipe Rack

Scale: 1/8" = 1'-0"
Units: imperial
Sheet: M-4.1
Discipline: Mechanical

Materials

Concrete Gypsum / Drywall Steel
