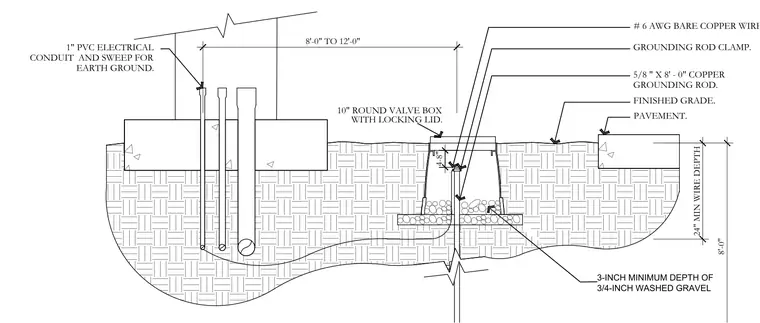

This assembly features a five-eighths inch by eight-foot copper grounding rod driven into the earth, connected to a number six American Wire Gauge bare copper wire via a grounding rod clamp. The connection is housed within a ten-inch round valve box with a locking lid, set atop a three-inch minimum depth of three-quarter-inch washed gravel. The bare copper wire is routed through a one-inch polyvinyl chloride electrical conduit and sweep for earth ground, maintained at a twenty-four-inch minimum depth below finished grade. The rod is positioned between eight and twelve feet from the adjacent conduit entry point.
Text on the drawing
PAVEMENT. FINISHED GRADE. GROUNDING ROD CLAMP. # 6 AWG BARE COPPER WIRE. 1" PVC ELECTRICAL CONDUIT AND SWEEP FOR EARTH GROUND. 8'-0" 24" MIN WIRE DEPTH 4-8" 8'-0" TO 12'-0" 5/8 " X 8' - 0" COPPER GROUNDING ROD. 10" ROUND VALVE BOX WITH LOCKING LID. 3-INCH MINIMUM DEPTH OF 3/4-INCH WASHED GRAVEL
