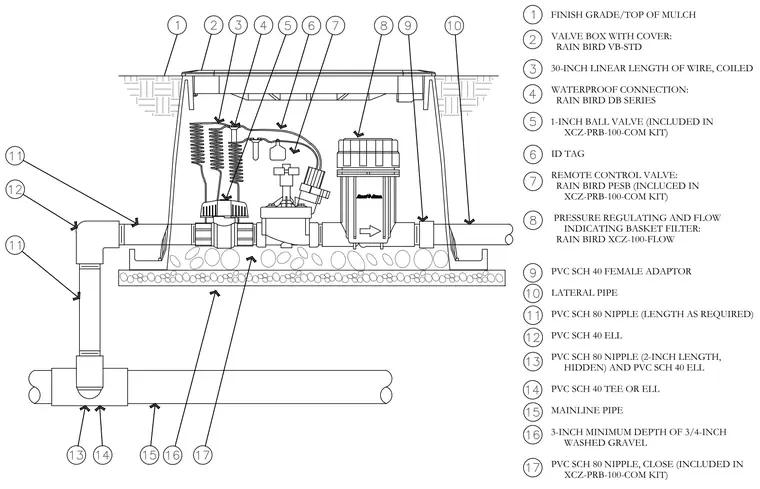

This assembly features a Rain Bird XCZ-PRB-100-COM drip control zone kit installed within a standard Rain Bird VB-STD valve box. The system connects to a mainline pipe via a PVC schedule 40 tee or ell, transitioning through a PVC schedule 80 nipple to a PVC schedule 40 ell and a secondary schedule 80 nipple. The control zone includes a one-inch ball valve, a Rain Bird PESB remote control valve, and a pressure-regulating basket filter. Electrical connections are made using waterproof Rain Bird DB series connectors with thirty inches of coiled wire. The entire valve assembly rests on a three-inch minimum depth bed of three-quarter-inch washed gravel for drainage, with lateral piping exiting the box through a PVC schedule 40 female adaptor.
Text on the drawing
FINISH GRADE/TOP OF MULCH VALVE BOX WITH COVER: RAIN BIRD VB-STD 30-INCH LINEAR LENGTH OF WIRE, COILED WATERPROOF CONNECTION: RAIN BIRD DB SERIES 1-INCH BALL VALVE (INCLUDED IN XCZ-PRB-100-COM KIT) ID TAG REMOTE CONTROL VALVE: RAIN BIRD PESB (INCLUCED IN XCZ-PRB-100-COM KIT) PRESSURE REGULATING AND FLOW INDICATING BASKET FILTER: RAIN BIRD XCZ-100-FLOW PVC SCH 40 FEMALE ADAPTOR LATERAL PIPE PVC SCH 80 NIPPLE (LENGTH AS REQUIRED) PVC SCH 40 ELL PVC SCH 80 NIPPLE (2-INCH LENGTH, HIDDEN) AND PVC SCH 40 ELL PVC SCH 40 TEE OR ELL MAINLINE PIPE 3-INCH MINIMUM DEPTH OF 3/4-INCH WASHED GRAVEL PVC SCH 80 NIPPLE, CLOSE (INCLUDED IN XCZ-PRB-100-COM KIT) PKJ DESIGN GROUP DRIP CONTROL ZONE KIT DETAIL NOT TO SCALE P
