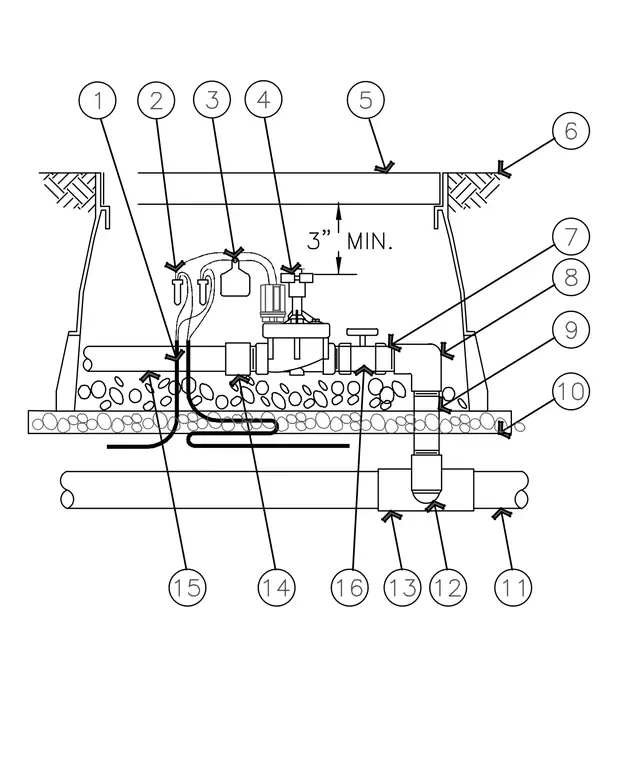

A Rain Bird PEB or PESB series remote-control valve with an IVM-SOL solenoid sits inside a Rain Bird VB-STD valve box and cover. The valve connects to a PVC Schedule 80 mainline pipe via a PVC Schedule 80 close nipple and a PVC Schedule 40 elbow, with a brass ball valve installed upstream. A PVC Schedule 40 tee or elbow connects to the lateral pipe using a PVC Schedule 40 male adapter. Two 36-inch lengths of 2-wire cable provide electrical connections via Rain Bird WC20 waterproof connectors. The assembly rests on a 3-inch minimum depth bed of 3/4-inch washed gravel for drainage, with the valve box cover set flush to the finish grade or top of mulch.
Text on the drawing
36-INCH LENGTH OF 2-WIRE CABLE WATERPROOF CONNECTION RAIN BIRD WC20 (TWO REQUIRED) ID TAG: RAIN BIRD VID SERIES REMOTE CONTROL VALVE: RAIN BIRD PEB/PESB/PESB-R WITH IVM-SOL VALVE BOX WITH COVER: RAIN BIRD VB-STD FINISH GRADE/TOP OF MULCH PVC SCH 80 NIPPLE (CLOSE) PVC SCH 40 ELL ` PVC SCH 80 NIPPLE (LENGTH AS REQUIRED) 3-INCH MINIMUM DEPTH OF 3/4-INCH WASHED GRAVEL PVC MAINLINE PIPE SCH 80 NIPPLE (2-INCH LENGTH, HIDDEN) AND SCH 40 ELL PVC SCH 40 TEE OR ELL PVC SCH 40 MALE ADAPTER PVC LATERAL PIPE 3-INCH MINIMUM DEPTH OF 3/4-INCH WASHED GRAVEL BRASS BALL VALVE PKJ DESIGN GROUP PEB OR PESB SERIES WITH IVM-SOL NOT TO SCALE M ELECTRIC REMOTE-CONTROL VALVE
