A Rain Bird XF series on-surface dripline connects to a PVC schedule 40 tee or elbow via a barb-to-male fitting. The dripline terminates at a flush point inside a subterranean emitter box, utilizing a Rain Bird MDCFCAP flush cap and MDCFCOUP easy-fit coupling on a half-inch polyethylene blank tubing. The emitter box sits upon a three-inch minimum depth of three-quarter-inch washed gravel. A minimum of six inches of dripline tubing must be maintained within the valve box to allow for the redirection of flushed water outside the enclosure.

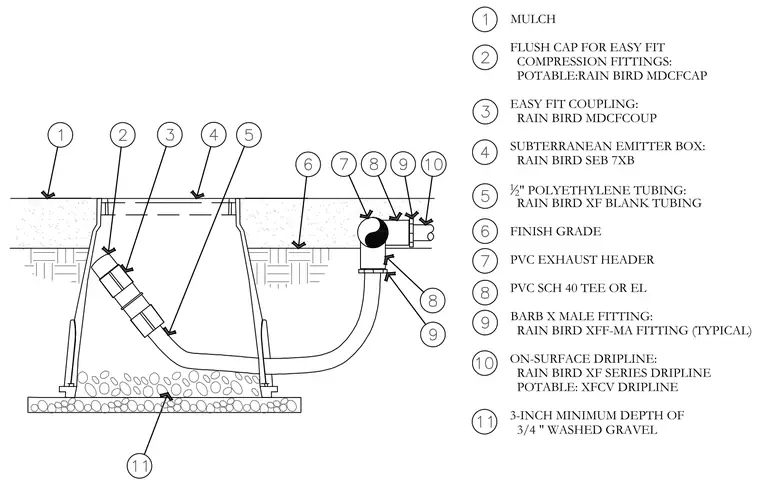

Text on the drawing
MULCH FLUSH CAP FOR EASY FIT COMPRESSION FITTINGS: POTABLE:RAIN BIRD MDCFCAP EASY FIT COUPLING: RAIN BIRD MDCFCOUP SUBTERRANEAN EMITTER BOX: RAIN BIRD SEB 7XB 12 " POLYETHYLENE TUBING: RAIN BIRD XF BLANK TUBING FINISH GRADE PVC EXHAUST HEADER PVC SCH 40 TEE OR EL BARB X MALE FITTING: RAIN BIRD XFF-MA FITTING (TYPICAL) ON-SURFACE DRIPLINE: RAIN BIRD XF SERIES DRIPLINE POTABLE: XFCV DRIPLINE 3-INCH MINIMUM DEPTH OF 3/4 " WASHED GRAVEL NOTE: 1. ALLOW A MINIMUM OF 6-INCHES OF DRIPLINE TUBING IN VALVE BOX IN ORDER TO DIRECT FLUSHED WATER OUTSIDE VALVE BOX. PKJ DESIGN GROUP ON-SURFACE DRIPLINE FLUSH POINT DETAIL NOT TO SCALE Q
