General · G-TBZEZ

Handicap Shower Clearances

Scale: 1/2" = 1'-0"
Units: imperial
Sheet: G005
Discipline: General

In this detail

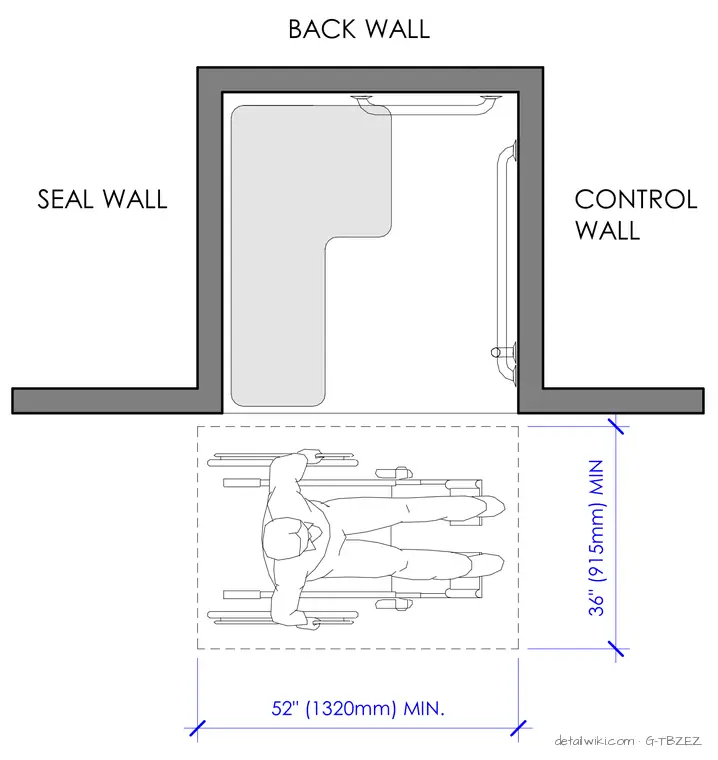

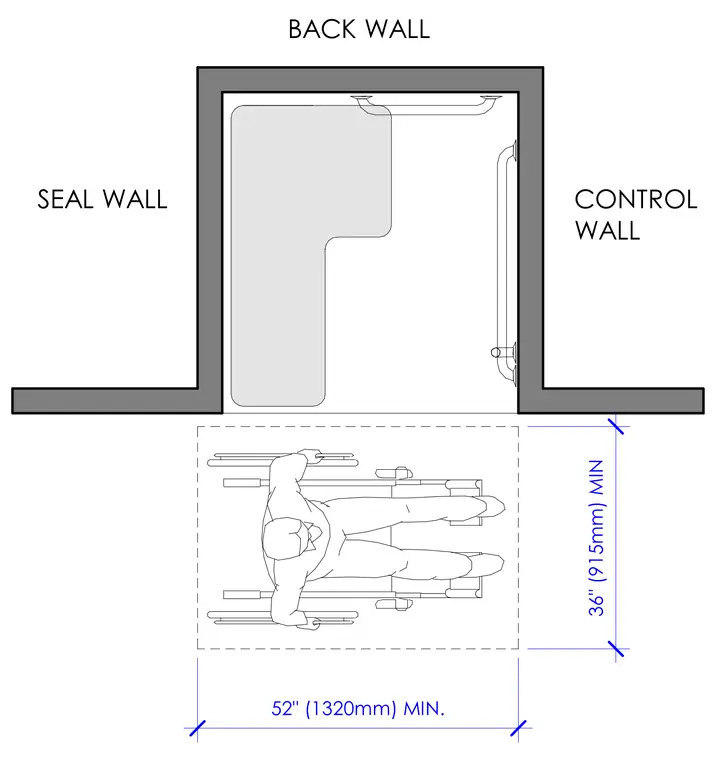

FIGURE 608.2.1.2 (A) TRANSFER-TYPE SHOWER COMPARTMENT CLEARANCE NEW BUILDING - OPTION 1 52" (1320mm) MIN. 36" (915mm) MIN BACK WALL SEAL WALL CONTROL WALL SEAL WALL
