General · G-D3TQV

Ada Drinking Fountain Requirements2

Units: imperial
Sheet: G005
Discipline: General

In this detail

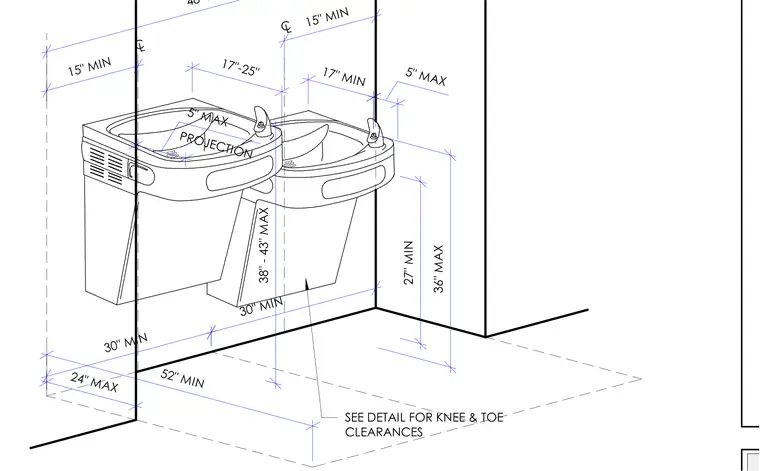

52" MIN 30" MIN 30" MIN 24" MAX 48" MIN 15" MIN 15" MIN 5" MAX PROJECTION 17"-25" 17" MIN 38" - 43" MAX 36" MAX 27" MIN 5" MAX C L C L SEE DETAIL FOR KNEE & TOE CLEARANCES
