General · G-88HEQ

Reduced Vertical Ada Clearances

Scale: 3/8" = 1'-0"
Units: imperial
Sheet: G005
Discipline: General

In this detail

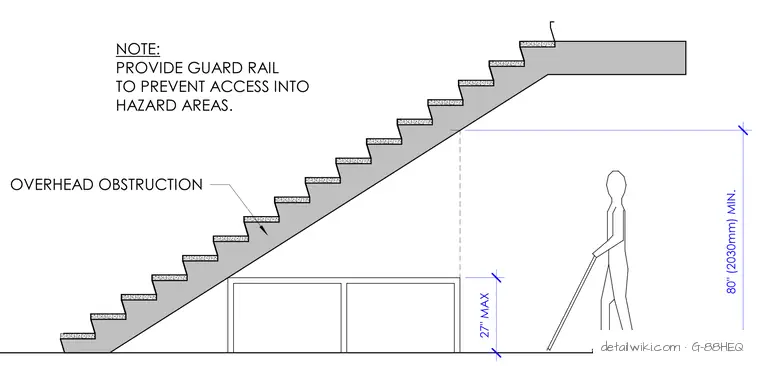

OVERHEAD OBSTRUCTION NOTE: PROVIDE GUARD RAIL TO PREVENT ACCESS INTO HAZARD AREAS. FIGURE 307.4 REDUCED VERTICAL CLEARANCE 80" (2030mm) MIN. 27" MAX
