Architectural · F-68JSH

Glass Venetian Blind

Units: imperial
Sheet: F14X
Discipline: Architectural

Materials

Glass / Glazing Metal (misc.)

In this detail

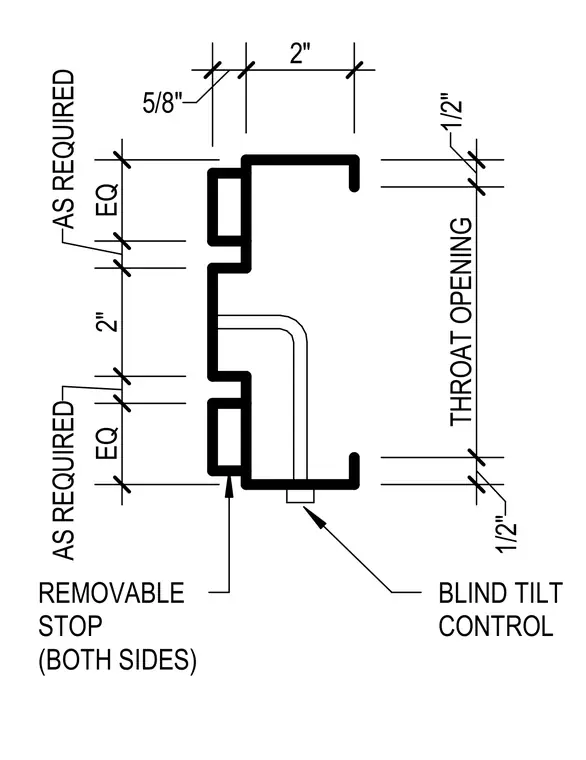

THROAT OPENING 1/2" EQ AS REQUIRED 2" EQ 5/8" 2"
