Architectural · A-YMFFQ

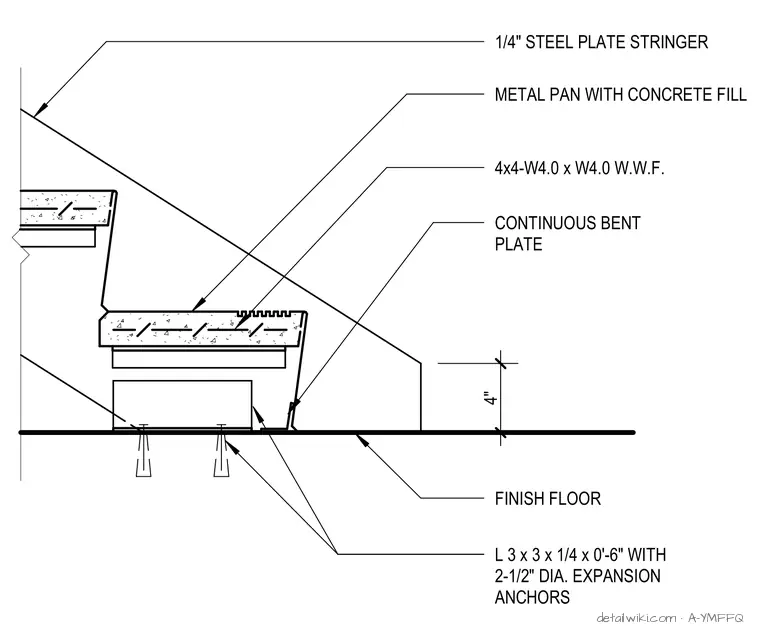

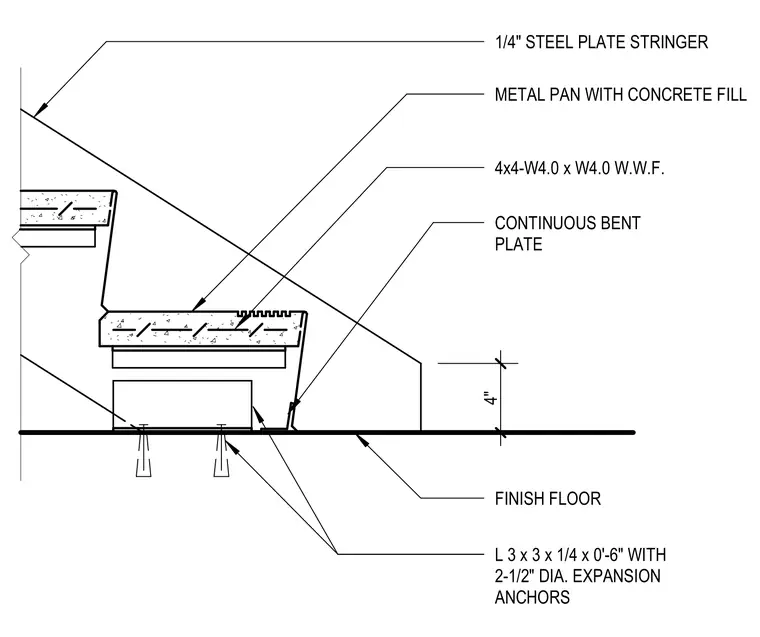

Stair At Slab - Concrete Pan

Scale: SCALE: 1 1/2" = 1'-0"
Units: imperial
Discipline: Architectural

Materials

Concrete Metal (misc.)Reinforced Concrete Steel

In this detail

1/4" STEEL PLATE STRINGER CONTINUOUS BENT PLATE METAL PAN WITH CONCRETE FILL FINISH FLOOR 4x4-W4.0 x W4.0 W.W.F. 4"

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
