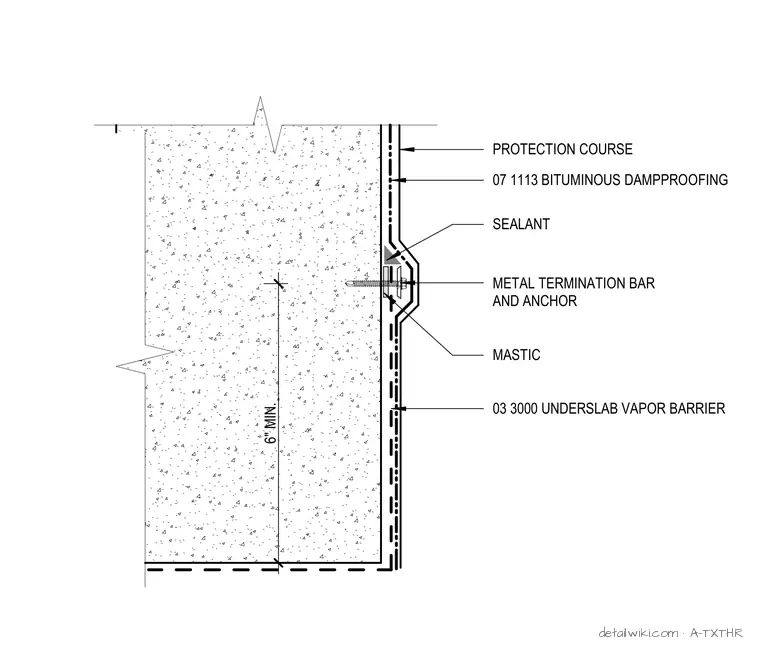

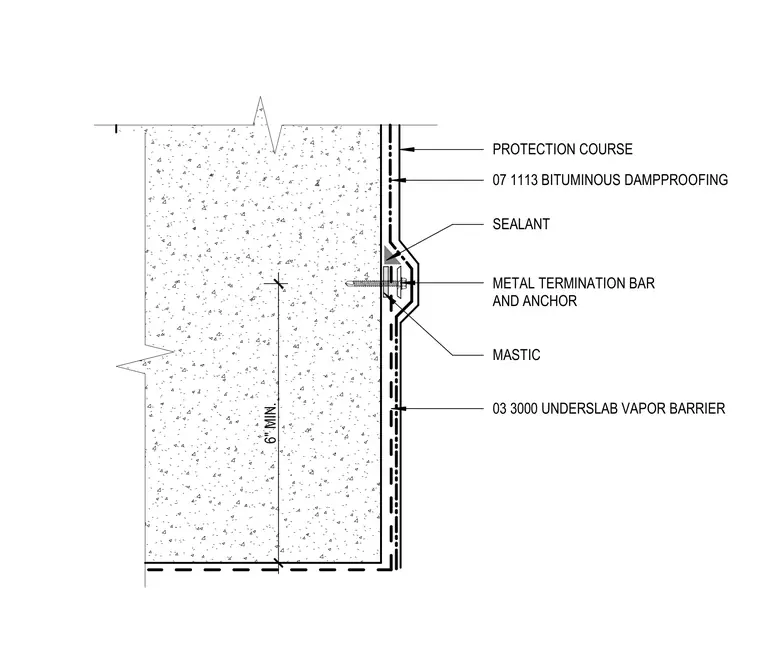

A-TXTHR — Underslab Vapor Barrier And Dampproofing Termination Detail

Architectural · A-TXTHR

Underslab Vapor Barrier And Dampproofing Termination Detail

Scale: SCALE: 3" = 1'-0"
Units: imperial
Discipline: Architectural

Materials

Concrete Membrane / Roofing Metal (misc.)

In this detail

PROTECTION COURSE SEALANT MASTIC METAL TERMINATION BAR AND ANCHOR 07 1113 BITUMINOUS DAMPPROOFING 03 3000 UNDERSLAB VAPOR BARRIER 6" MIN.
