Architectural · A-TG25J

Storefront Door Head

Scale: SCALE: 3" = 1'-0"
Units: imperial
Sheet: A8.0
Discipline: Architectural

Materials

Aluminum Glass / Glazing

In this detail

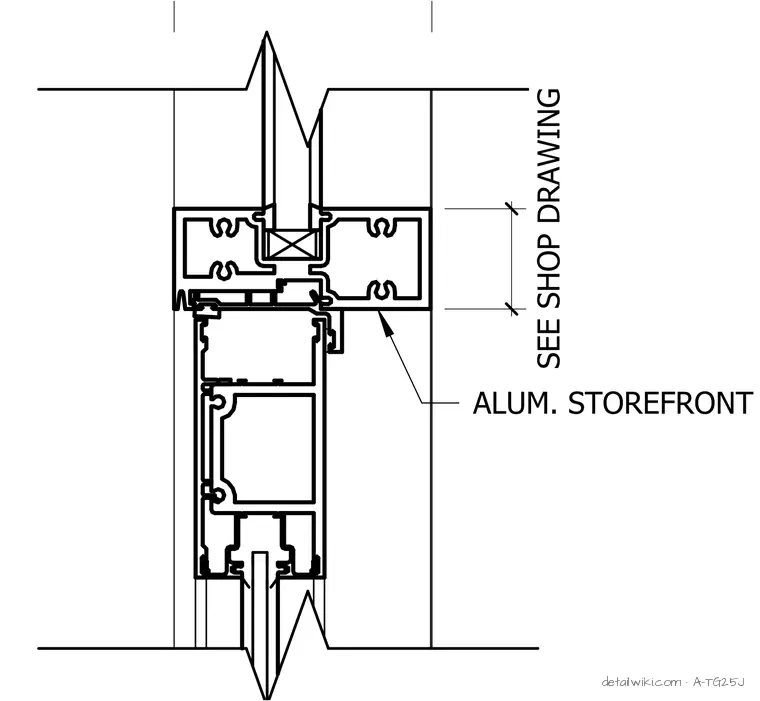

ALUM. STOREFRONT SEE SHOP DRAWING SEE SHOP DRAWING SCALE: 3" = 1'-0" 2
