Architectural · A-PMEXK

Stringer Detail

Scale: 3" = 1'-0"
Units: imperial
Discipline: Architectural

Materials

Steel

In this detail

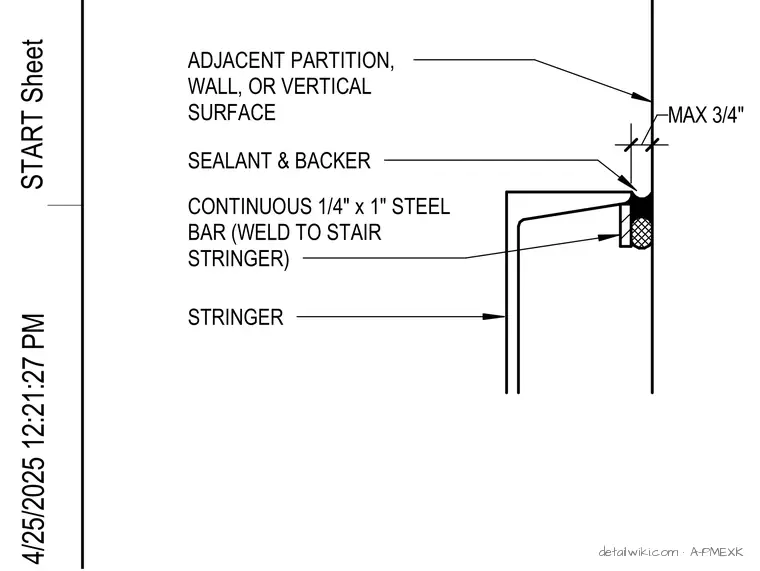

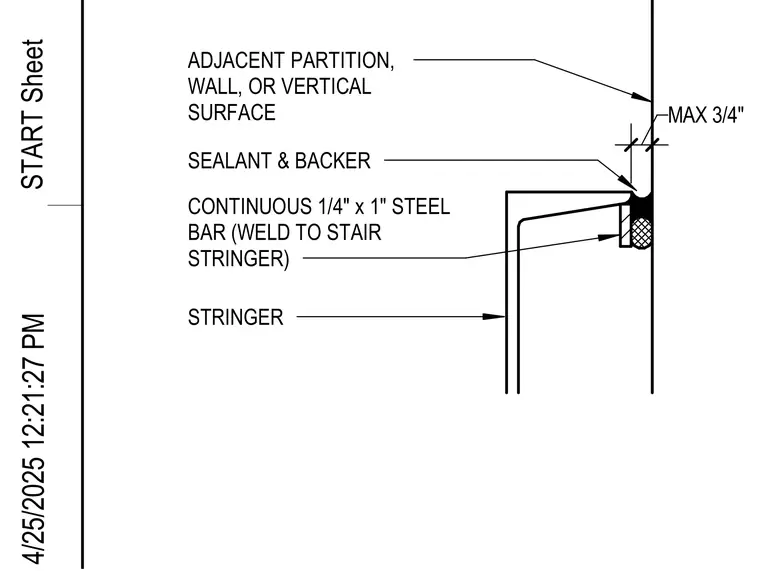

ADJACENT PARTITION, WALL, OR VERTICAL SURFACE MAX 3/4" STRINGER CONTINUOUS 1/4" x 1" STEEL BAR (WELD TO STAIR STRINGER) SEALANT & BACKER
