Architectural · A-HTPE3

Ladder Column At Roof Deck

Units: imperial
Sheet: A411
Discipline: Architectural

Materials

Metal (misc.)Steel

In this detail

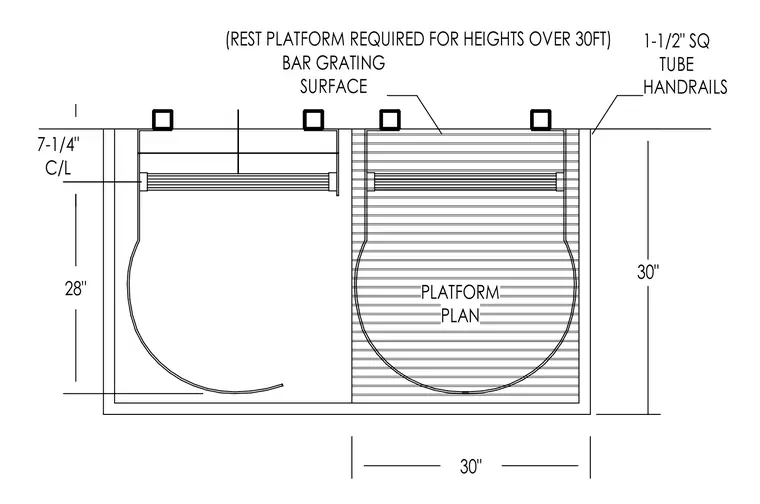

(REST PLATFORM REQUIRED FOR HEIGHTS OVER 30FT) PLATFORM PLAN BAR GRATING SURFACE 7-1/4" C/L 28" 30" 1-1/2" SQ TUBE HANDRAILS 30"
