Architectural · A-EF69J

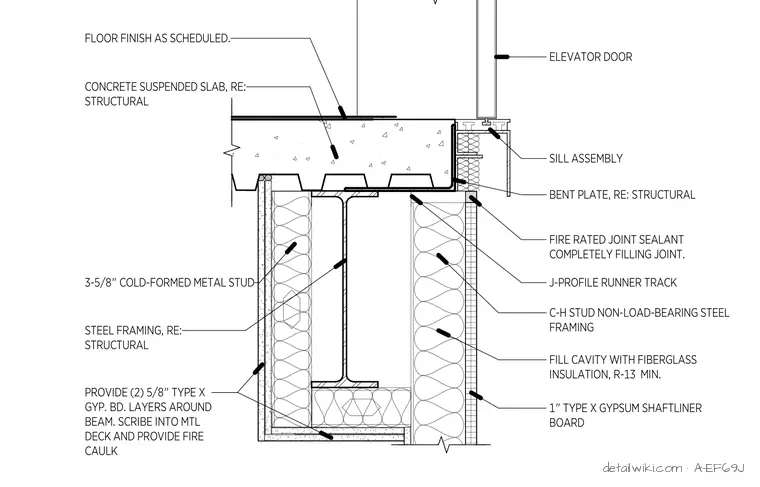

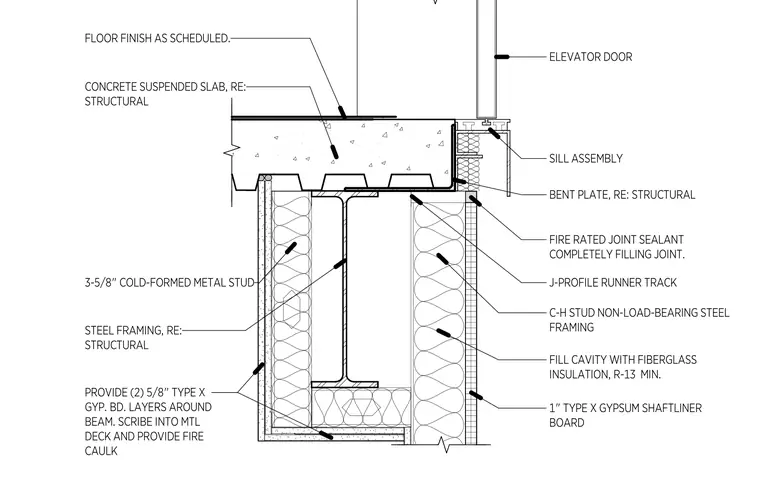

Elevator Sill

Scale: 1 1/2" = 1'-0"
Units: imperial
Sheet: AE712
Discipline: Architectural

Materials

Cold-formed Steel Concrete Gypsum / Drywall Metal (misc.)Steel Timber / Wood
