A-CHDEB — Typical Floor Landing

Architectural · A-CHDEB

Typical Floor Landing

Scale: SCALE: 1 1/2" = 1'-0"
Units: imperial
Discipline: Architectural

Materials

In this detail

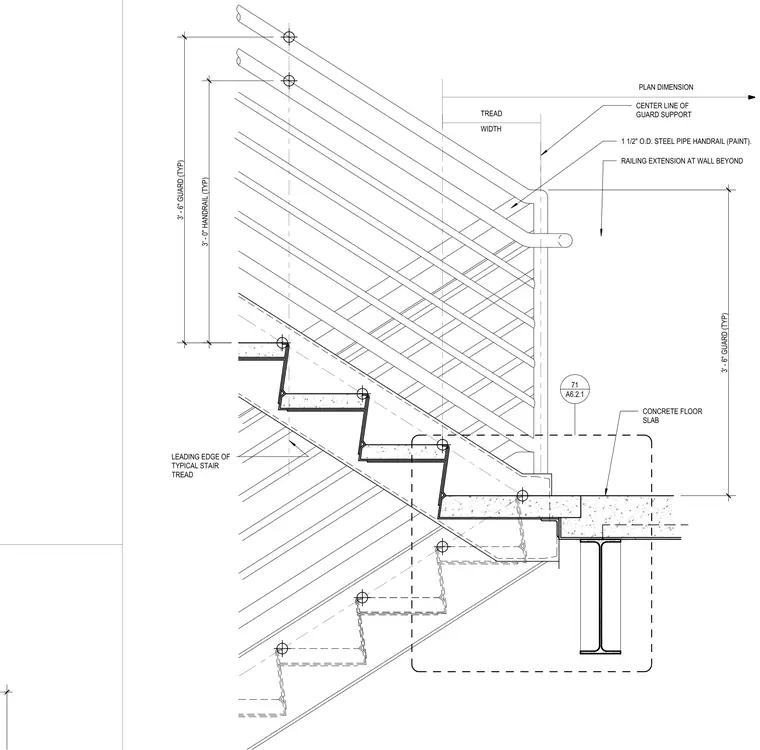

LEADING EDGE OF TYPICAL STAIR TREAD 3' - 0" HANDRAIL (TYP) 3' - 6" GUARD (TYP) 3' - 6" GUARD (TYP) CONCRETE FLOOR SLAB CENTER LINE OF GUARD SUPPORT TREAD WIDTH PLAN DIMENSION 1 1/2" O.D. STEEL PIPE HANDRAIL (PAINT). RAILING EXTENSION AT WALL BEYOND A6.2.1 71
