Architectural · A-B4SMD

Storefront Threshold

Scale: SCALE: 3" = 1'-0"
Units: imperial
Sheet: A8.0
Discipline: Architectural

Materials

Aluminum Composite Concrete

In this detail

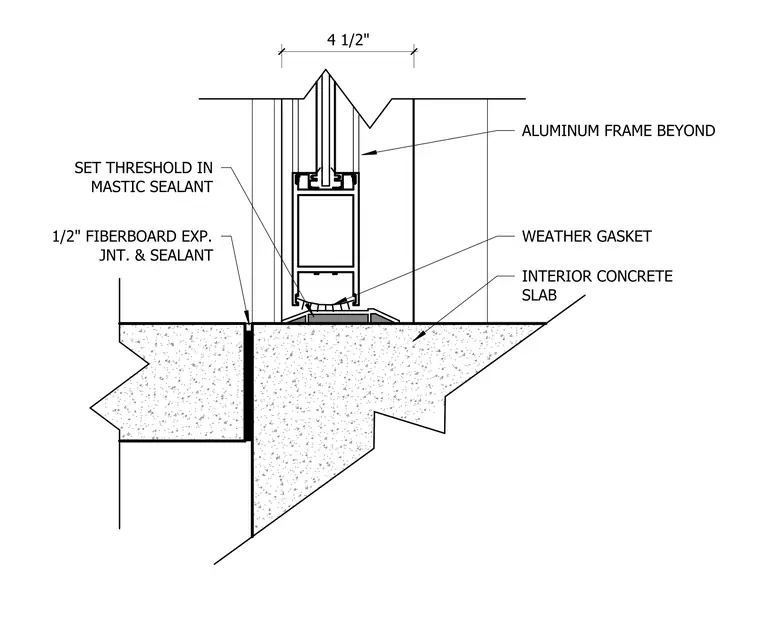

WEATHER GASKET INTERIOR CONCRETE SLAB ALUMINUM FRAME BEYOND 4 1/2" 1/2" FIBERBOARD EXP. JNT. & SEALANT SET THRESHOLD IN MASTIC SEALANT
