A-94EH4 — Cubicle Curtain Track At Gyp Ceiling

Architectural · A-94EH4

Cubicle Curtain Track At Gyp Ceiling

Units: imperial
Discipline: Architectural

Materials

Gypsum / Drywall Timber / Wood

In this detail

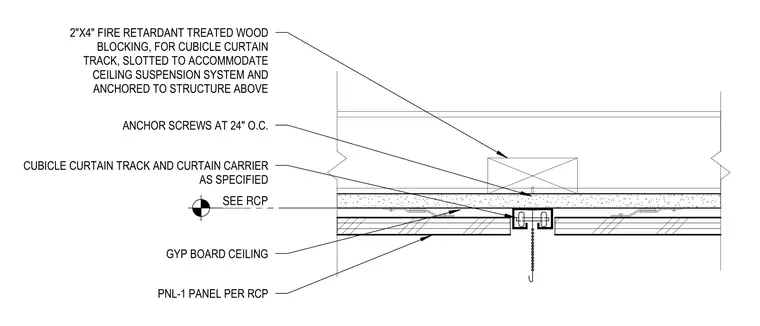

CUBICLE CURTAIN TRACK AND CURTAIN CARRIER AS SPECIFIED GYP BOARD CEILING ANCHOR SCREWS AT 24" O.C. 2"X4" FIRE RETARDANT TREATED WOOD BLOCKING, FOR CUBICLE CURTAIN TRACK, SLOTTED TO ACCOMMODATE CEILING SUSPENSION SYSTEM AND ANCHORED TO STRUCTURE ABOVE SEE RCP PNL-1 PANEL PER RCP
