A-5DBQV — Typical Assembly

Architectural · A-5DBQV

Typical Assembly

Units: metric
Discipline: Architectural

Materials

Composite Concrete Membrane / Roofing Steel

In this detail

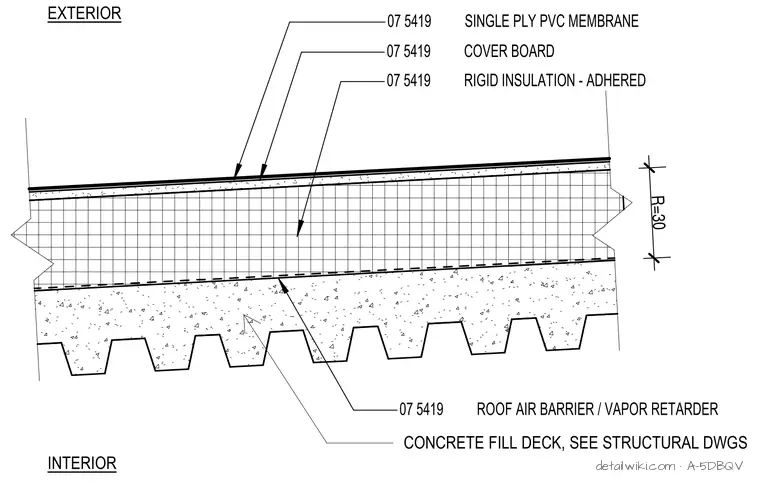

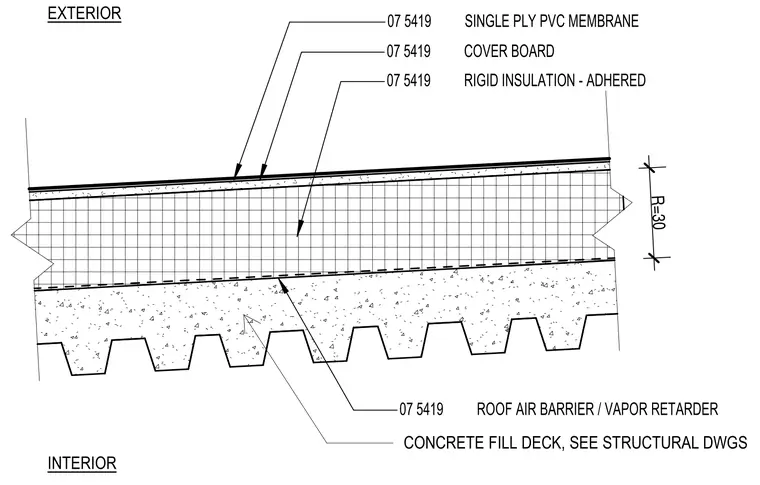

R310 TYPICAL ASSEMBLY R310 ROOF ASSEMBLY SINGLE PLY THERMOPLASTIC (PVC) MEMBRANE FULLY ADHERED SLOPED COMPOSITE STEEL DECK EXTERIOR INTERIOR 07 5419 RIGID INSULATION - ADHERED 07 5419 COVER BOARD 07 5419 SINGLE PLY PVC MEMBRANE 07 5419 ROOF AIR BARRIER / VAPOR RETARDER CONCRETE FILL DECK, SEE STRUCTURAL DWGS R=30 R311 R311A R311
