Architectural · A-2HEX4

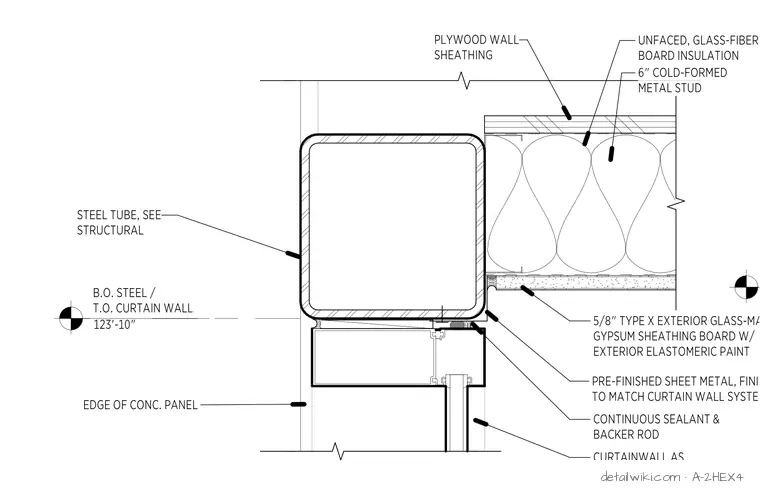

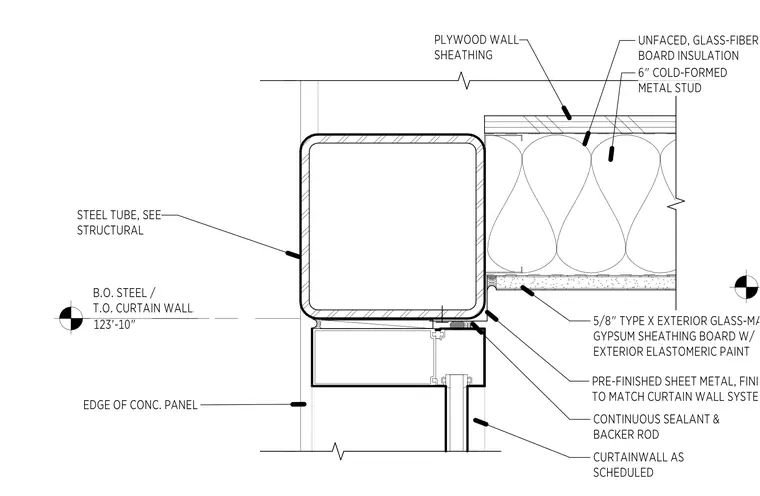

Curtainwall Head Support

Scale: 3" = 1'-0"
Units: imperial
Sheet: AE802
Discipline: Architectural

Materials

Cold-formed Steel Concrete Glass / Glazing Gypsum / Drywall Metal (misc.)Steel Timber / Wood
