A-22VFN — Pipe Penetration Section Detail Post-Applied Dampproofing

Architectural · A-22VFN

Pipe Penetration Section Detail Post-Applied Dampproofing

Scale: SCALE: 3" = 1'-0"
Units: imperial
Discipline: Architectural

Materials

Concrete Reinforced Concrete

In this detail

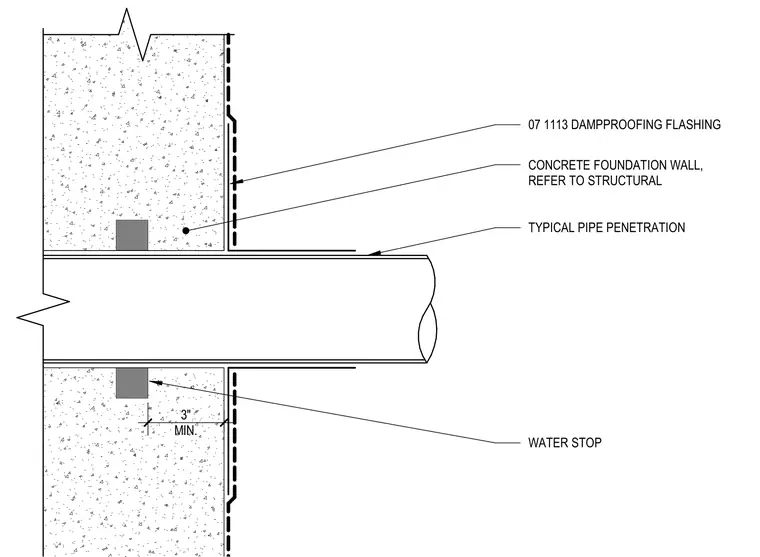

CONCRETE FOUNDATION WALL, REFER TO STRUCTURAL TYPICAL PIPE PENETRATION MIN. 3" WATER STOP 07 1113 DAMPPROOFING FLASHING
